BG 500

Powerful support.

The Paulmichl BG 500 agitator is used to provide mechanical and powerful support in fermenters and secondary fermentation tanks. Infinitely variable and easy to operate, it is equipped with a hydraulic adjustment facility to enable optimum adaptation to the tank substrate, even with changing fill levels, in secondary fermentation tanks or gas-tight final storage tanks. The BG 500 biogas agitator is used to provide mechanical and powerful support for the homogenisation process in fermenters, mainly in the area of solids input.

Biogas-Rührwerk BG 500
Rührwerk BG 500 Wandkonstruktion einer Biogasanlage
BG 500 Rührwerk für den Einsatz in Hochbehältern
Nahaufnahme des Rührwerks BG 500

Powerful support

Advantages of the BG 500 agitator

  • Ideal for use in elevated tanks
  • Can be used with varying fill levels
  • Durable smooth running due to robust scraper blade
  • stepless & user-friendly hydraulic adjustment option
  • High-quality sealing unit
  • Wall and ceiling installation possible
  • Powerful & low-noise transmission by means of toothed belt drive

Technical data

  • Optional: additional or sole PTO connection or hydraulic drive unit
  • Standard: horizontal and vertical hydraulic adjustment device with hand pump and control unit
  • Oil expansion tank for leakage monitoring
  • Standard installation length: 5.00 m - shorter lengths available (on request)
  • Agitator blade diameter: 600 - 840mm
  • Mechanical seal: SIC/SIC

The BG 500-V additional agitator for even more power

The agitator is used for mechanical and powerful support in fermenters, mainly as an additional agitator for containers equipped with only one agitator (e.g. horizontal paddle agitator). The agitator is customised - with a standard installation plate or with a customised design for existing ceiling openings. The multi-reinforced drive unit guarantees reliable use for increased requirements.



Technical data

  • Motor size: 9.0 - 18.5 kW
  • Optional additional equipment with motor-gear unit
  • Robust angular gearbox for deflection into horizontal thrust
  • Installation with core bore Ø 700 mm
  • Infinitely variable 360° swivelling range for optimum adaptation to the area of application
  • stepless & user-friendly hydraulic adjustment option



Further products

  • Fermenterrührwerk für Biogasanlagen: Mammut RF3
    Mammut RF3
    • Ideal for constant fill level
    • Powerful, high-quality and highly efficient
    • Wall and ceiling installation possible
    to product
  • Stabrührwerk für Biogasanlagen - Multimix
    Multimix
    • Suitable for changing fill levels
    • Powerful transmission via toothed belt drive
    • Biogas agitator available in a wide range of variants
    to product
  • Ecomix Rührwerk für Biogasanlagen
    Ecomix
    • Robust & modular design
    • Often used as an agitator for strong support
    • Suitable for constant fill levels
    to product
  • Tauchmotorrührwerk für Biogas-Anlagen

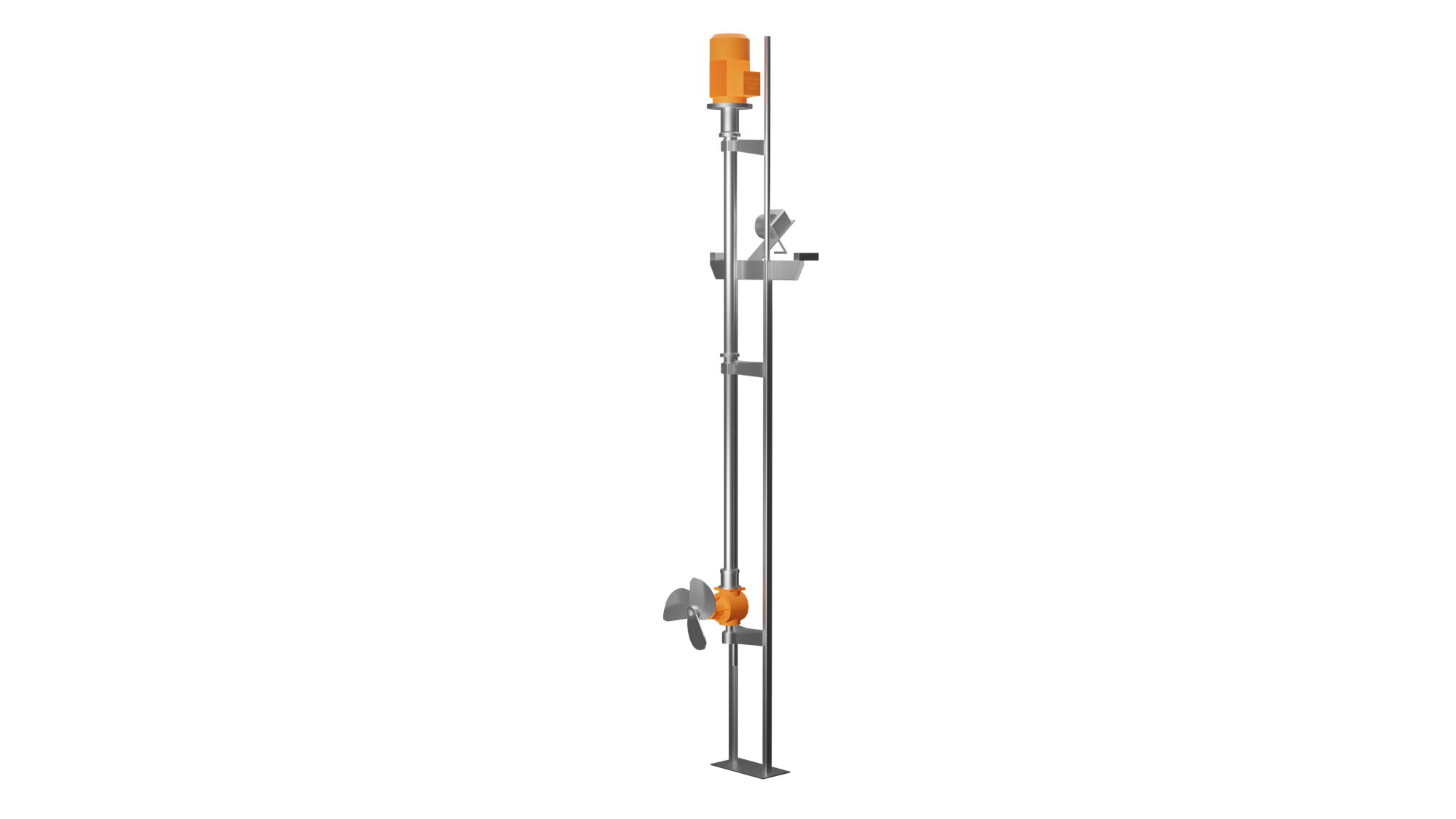

    Submersible mixer
