Ecomix

The team player among agitators

Type Ecomix - agitator for powerful support

The Paulmichl agitator type Ecomix can be used in fermenters, secondary fermenters and final storage tanks and is often used as a second agitator to supplement and provide powerful support for the agitators already installed.

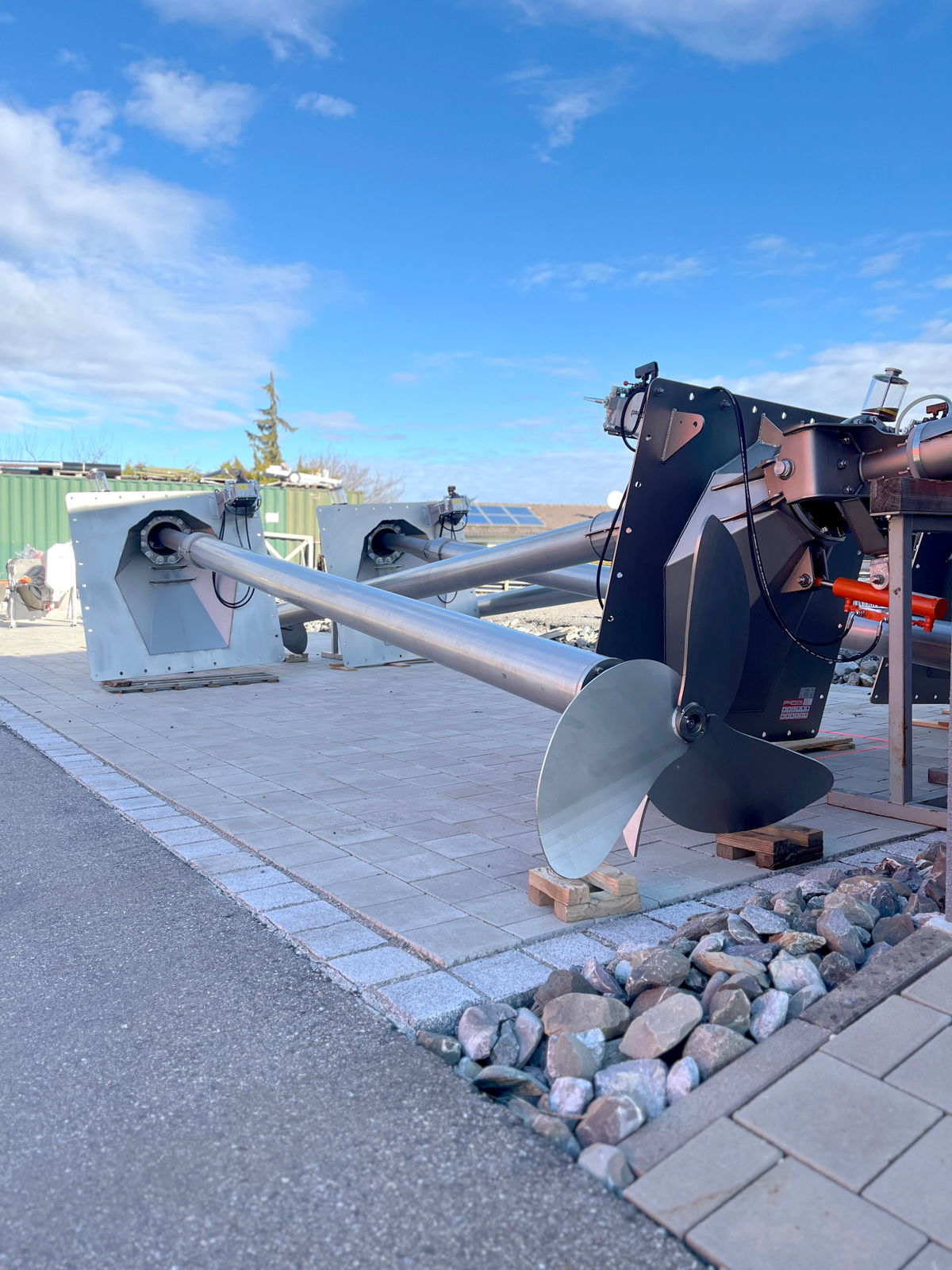

Ecomix Biogas-Rührwerk vor der Montage

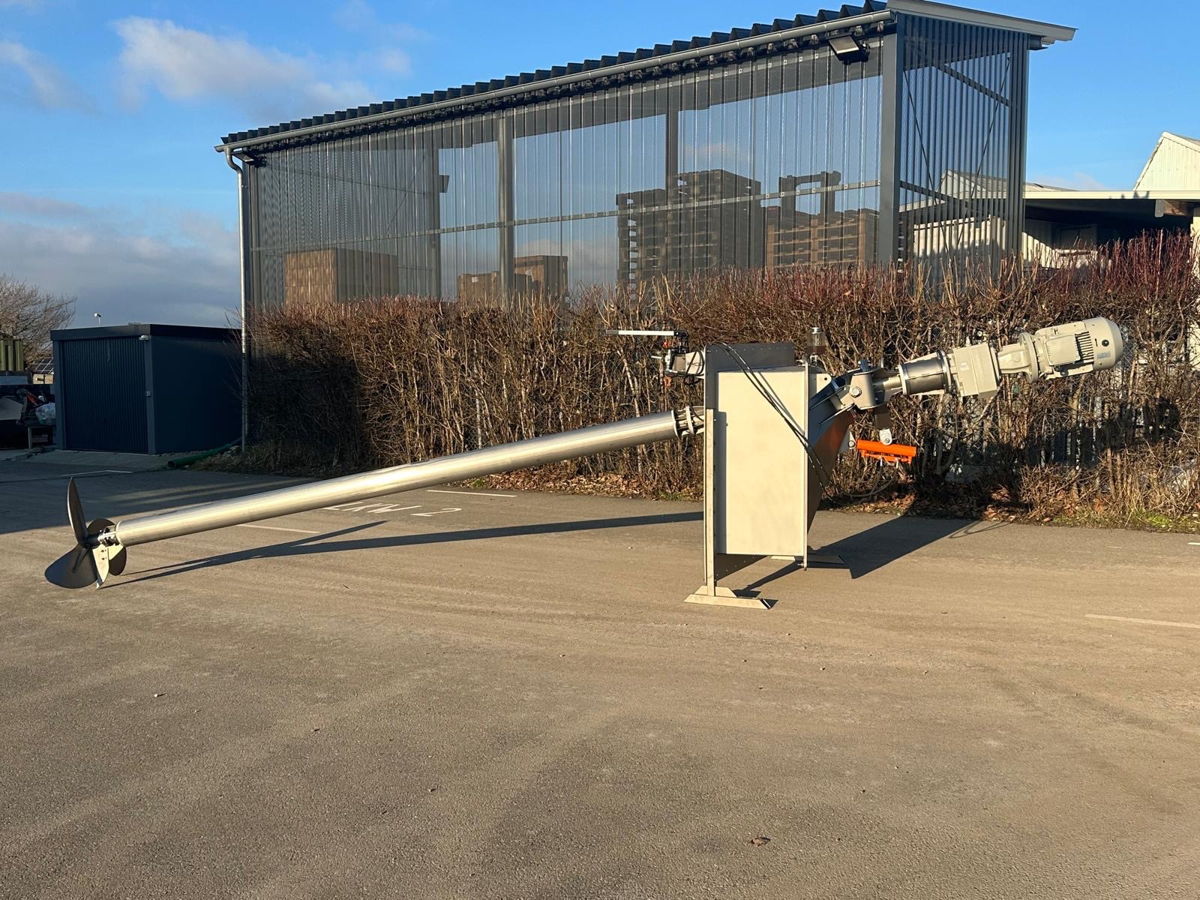

Biogas-Rührwerk Ecomix von der Seite

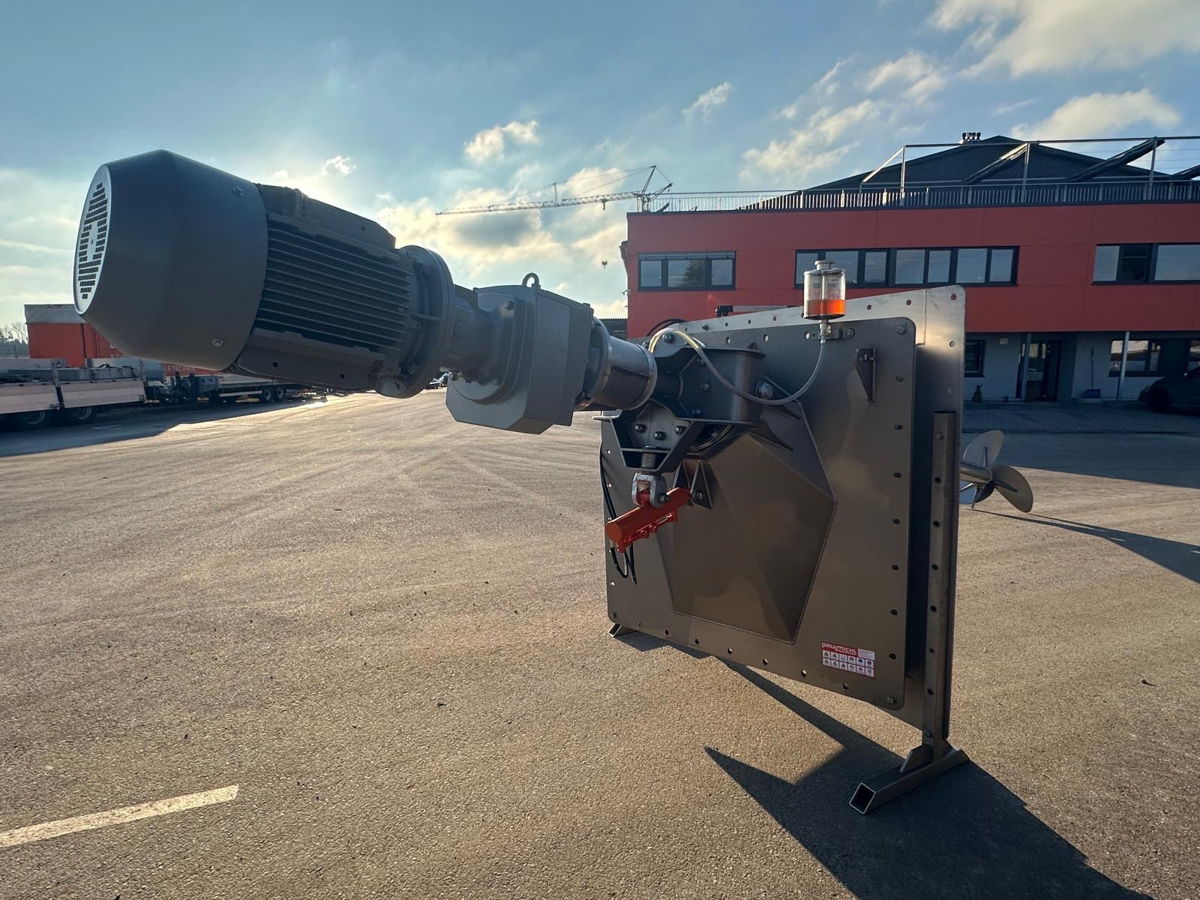

Ecomix Rührwerk von Paulmichl

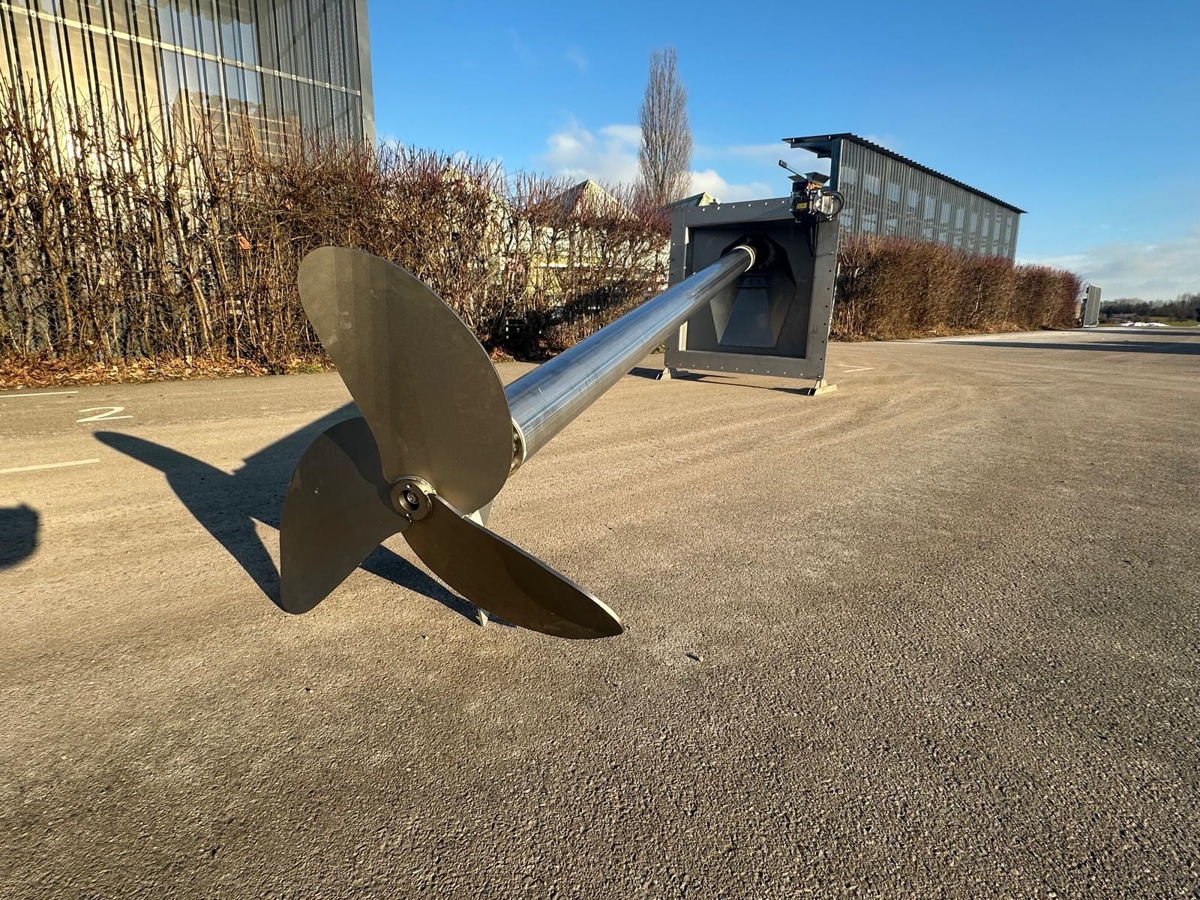

Schraube des Ecomix Rührwerks

Advantages of the Ecomix agitator

  • Suitable for constant fill levels
  • Multiple reinforcement of the agitator shaft with double agitator tube
  • stepless & user-friendly hydraulic adjustment option
  • Powerful, low-noise geared motor
  • Robust & modular design
  • Easily accessible drive elements

The standard vertical hydraulic adjustment device is equipped with a hydraulic cylinder, a hand pump and a control unit. Horizontal adjustment is carried out via an attached swivelling mechanism +/- 25°, which is infinitely adjustable using a threaded rod.

A further advantage of this agitator for biogas plants is its very stable and robust modular design, which guarantees very reliable operation. The use of a double sealing membrane on the tank mounting plate allows it to be used at different installation heights.

Technical data

  • Overall length: 4.00m
  • Flexibel anpassbar – Vertikale und horizontale Verstellung mittels hydraulischer Handpumpe
  • Mechanical seal: SIC/SIC
  • High-quality sealing unit
  • Hochwertige Komponenten – Edelstahl-Rührflügel (1.000 mm) mit ca. 190 U/min (bei 50 Hz)
  • Leistungsstarker Antrieb – 18,5 kW / 25 PS Elektromotor, 4-polig
  • Oil expansion tank for leakage monitoring
  • Optimale Installation – Wandeinbau mit 20° Neigungswinkel
  • Optional: Sanftanlauf oder Frequenzumrichter – Für eine optimale Steuerung des Betriebs
  • Stepless & user-friendly hydraulic adjustment option
